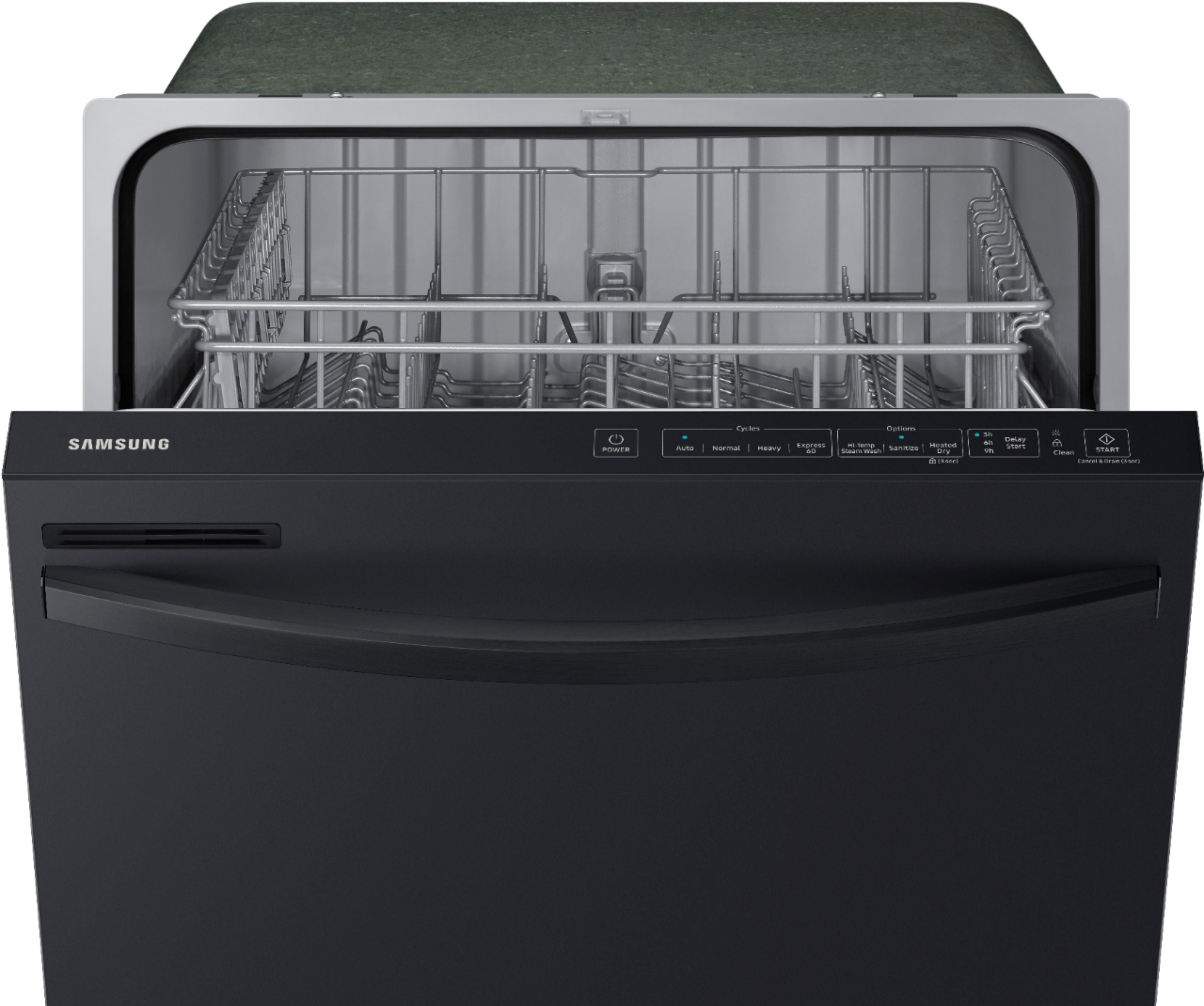

Digital Touch Controls

Digital touch controls make it easy to select functions with a gentle touch.

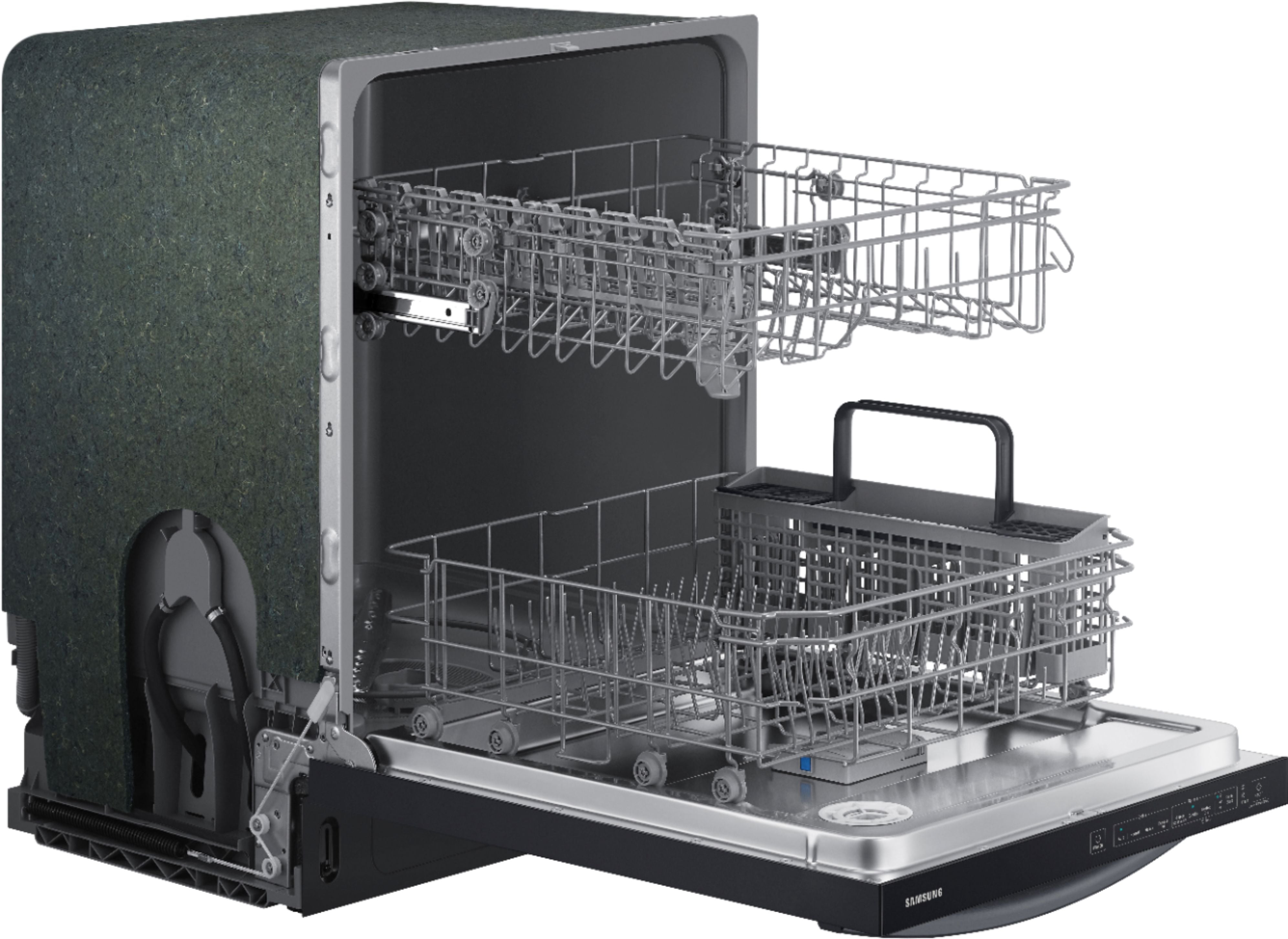

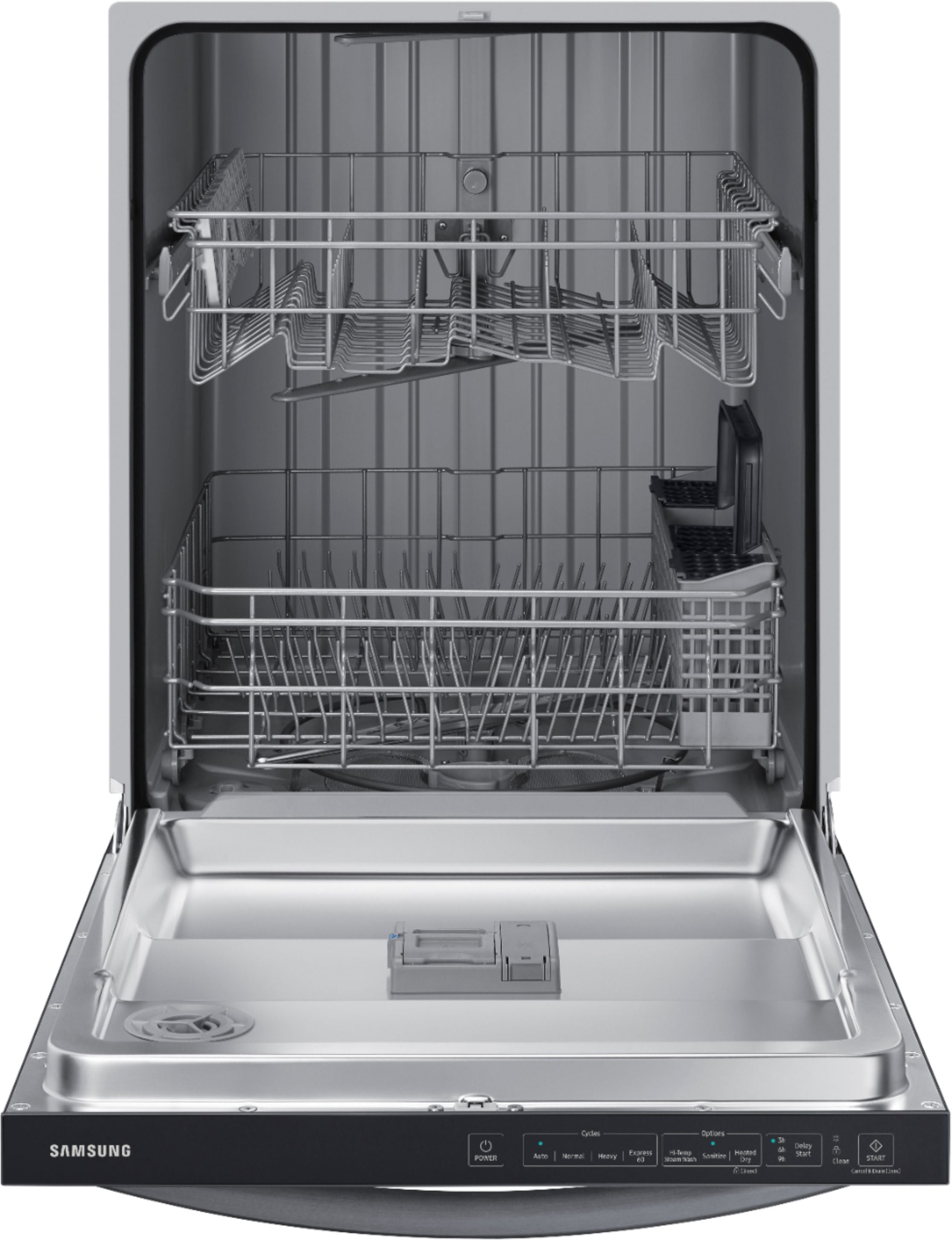

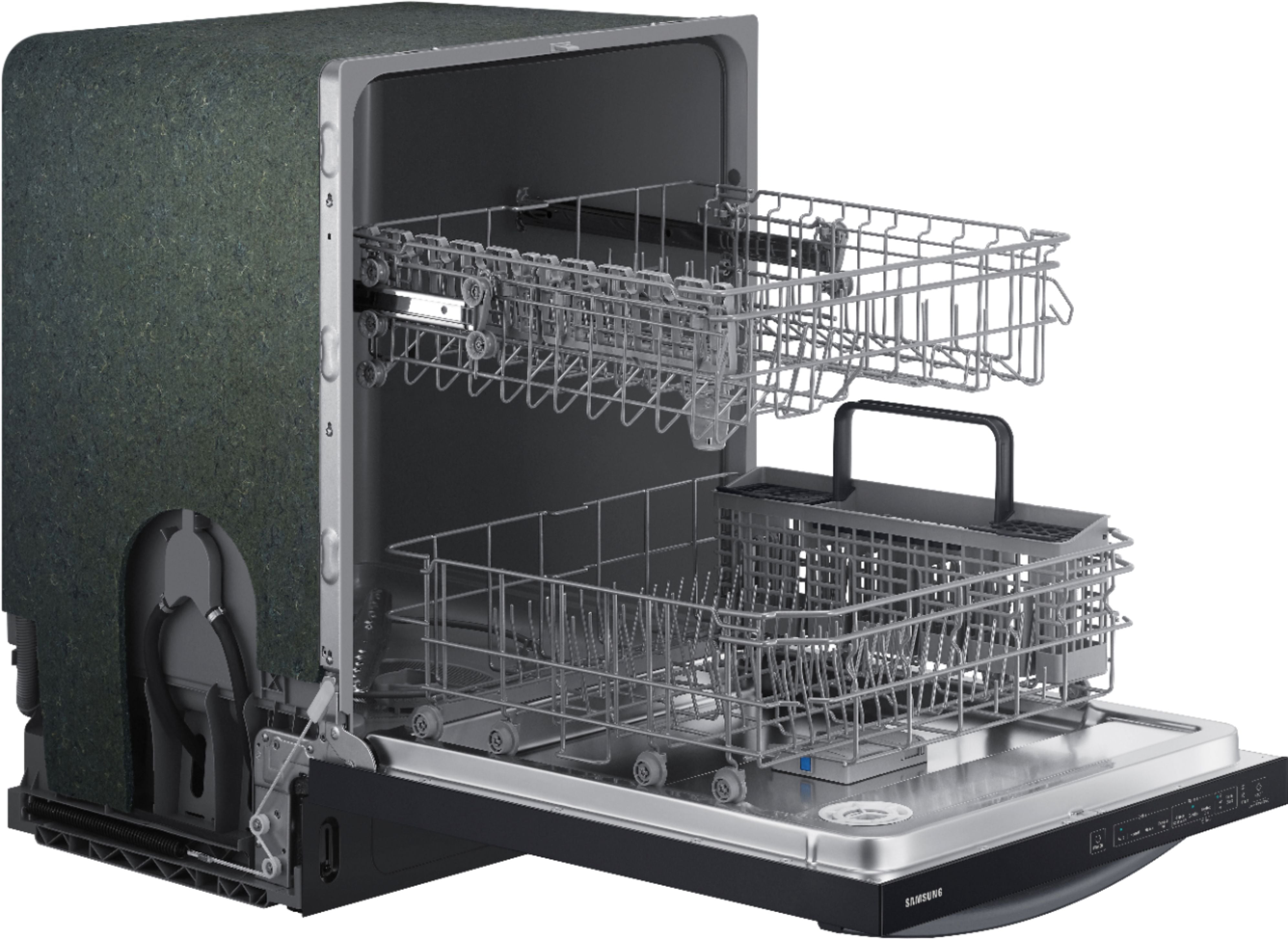

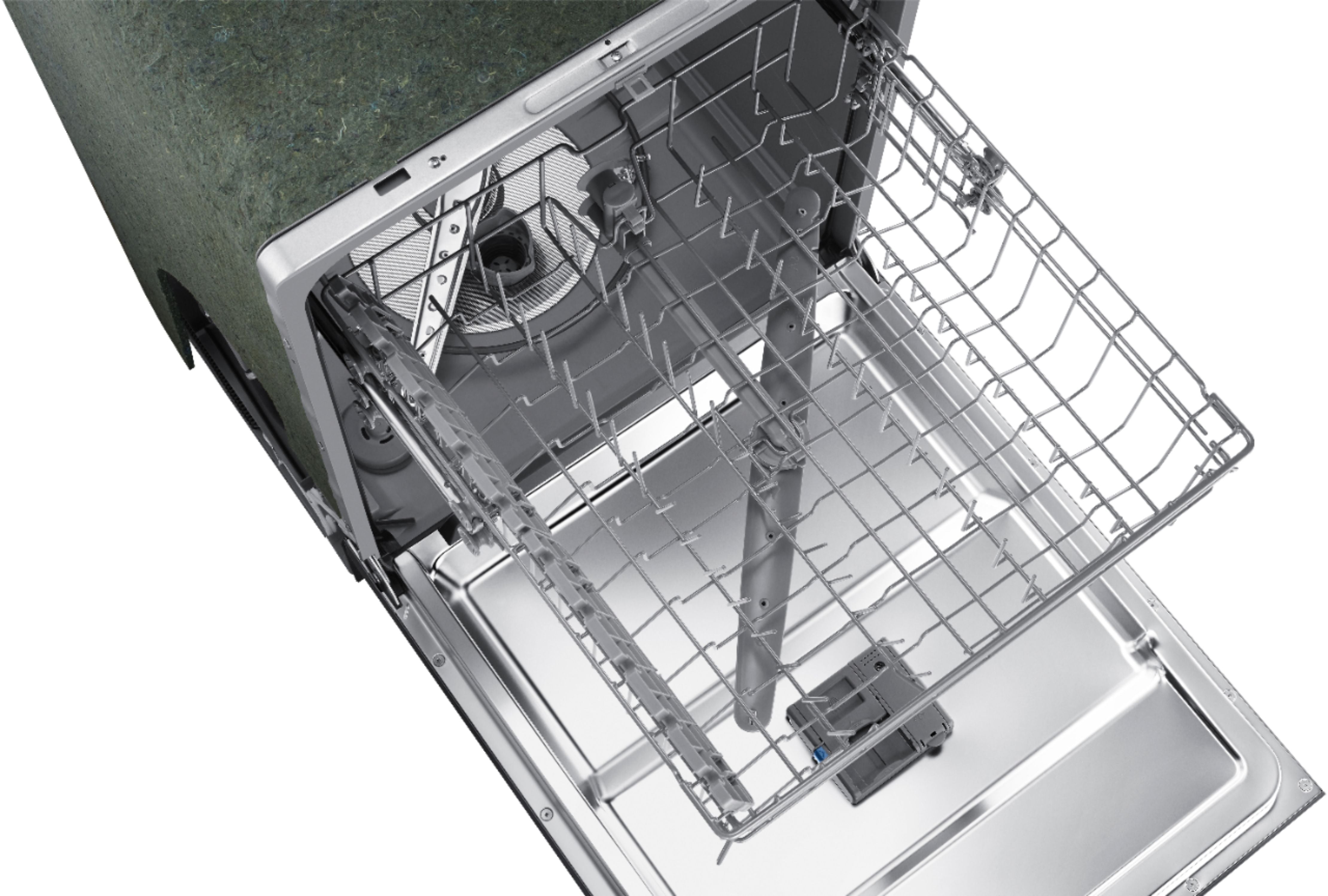

Adjustable Rack

The height adjustable upper rack makes it easy to accommodate various dishware shapes and sizes.

Stainless Steel Door

The interior door is covered with stainless steel that’s more durable.

4 Wash Cycles

4 wash cycles include Auto, Normal, Heavy, and Express 60.

5 Control Options

Hi-Temp Wash, Sanitize, Delay Start, Control Lock, and Heated Dry.

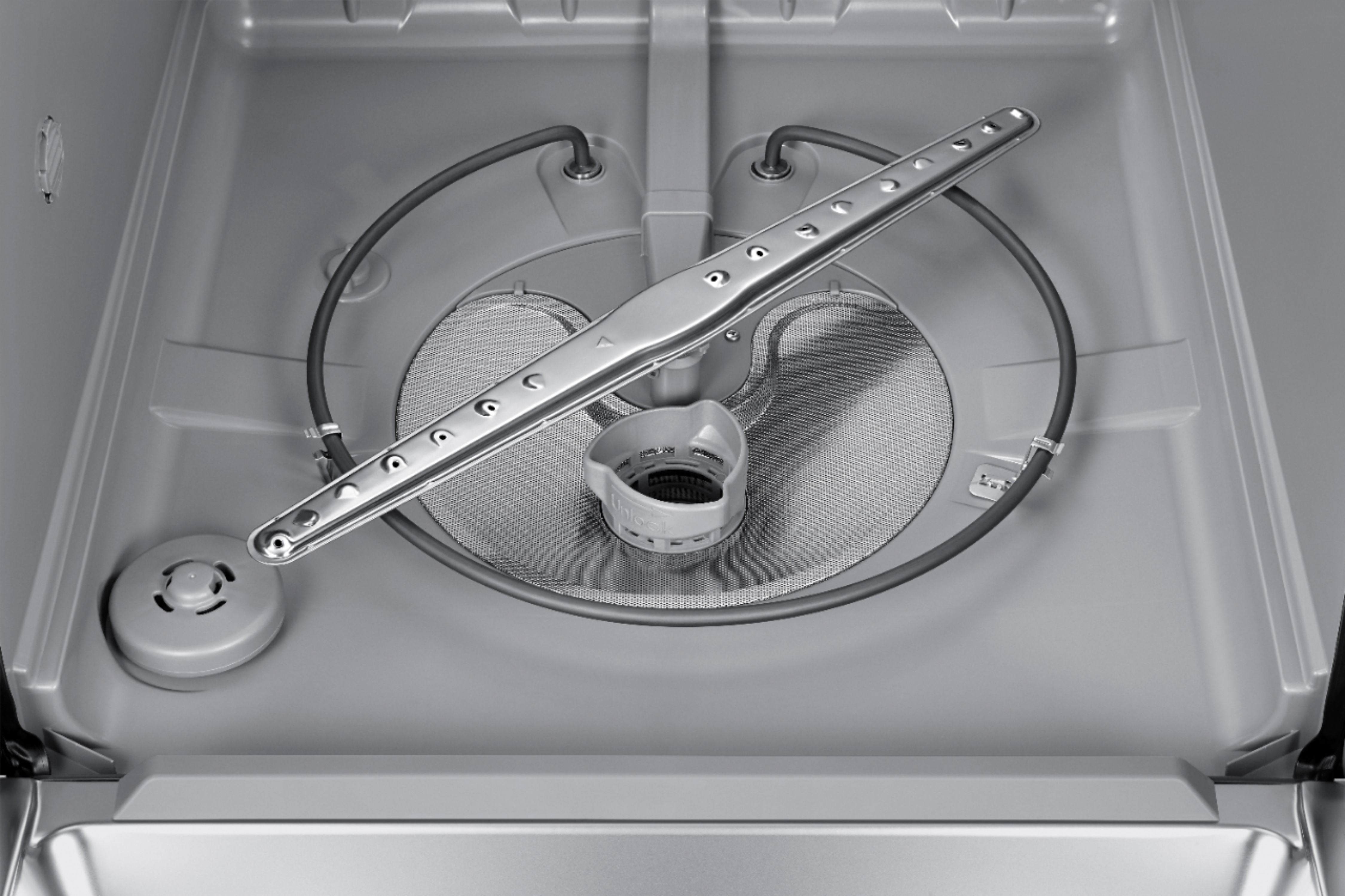

Advanced Wash System

Provides a heavy-duty wash to get pots and pans clean.

55 dBA noise level rating

For quieter cleaning of dishes.

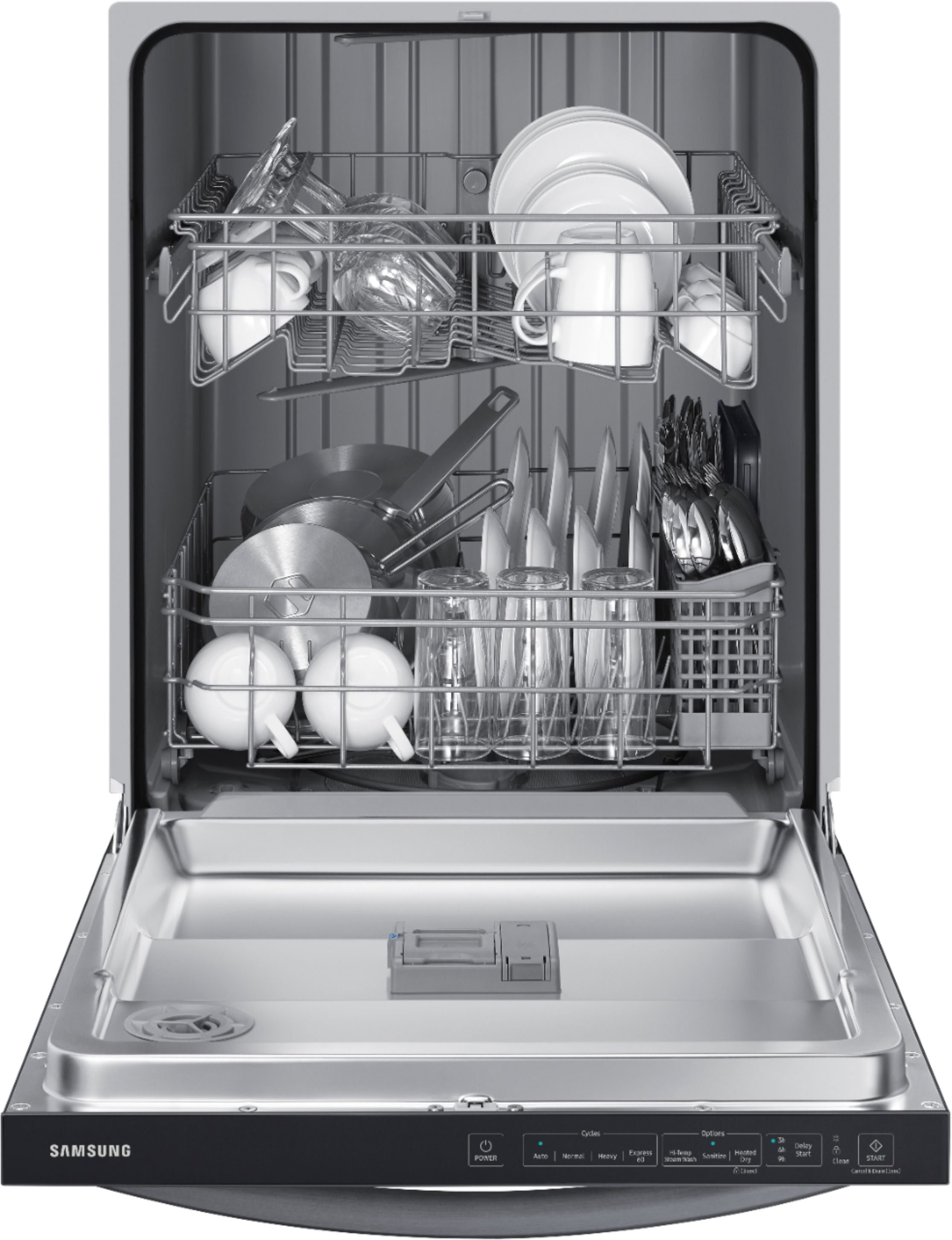

Accommodates 14 Place Settings

Wash up to 14 place settings in a single load, ideal for clean up after entertaining.

Digital Leak Sensor

Identifies leaks and automatically shuts off before water can escape.

Energy Star Rated

ENERGY STAR rated, which means lower energy bills and carbon footprint than non-certified models.

Specifications

Key Specs

• Product Height: 33 7/8 inches

• Product Width: 23 7/8 inches

• Product Depth: 24 5/8 inches

• Operating Sound Level: 55 decibels adjusted

• Number Of Racks: 2

• Tub Finish: Plastic

• Place Setting Capacity: 14

• Color Finish: Black

General

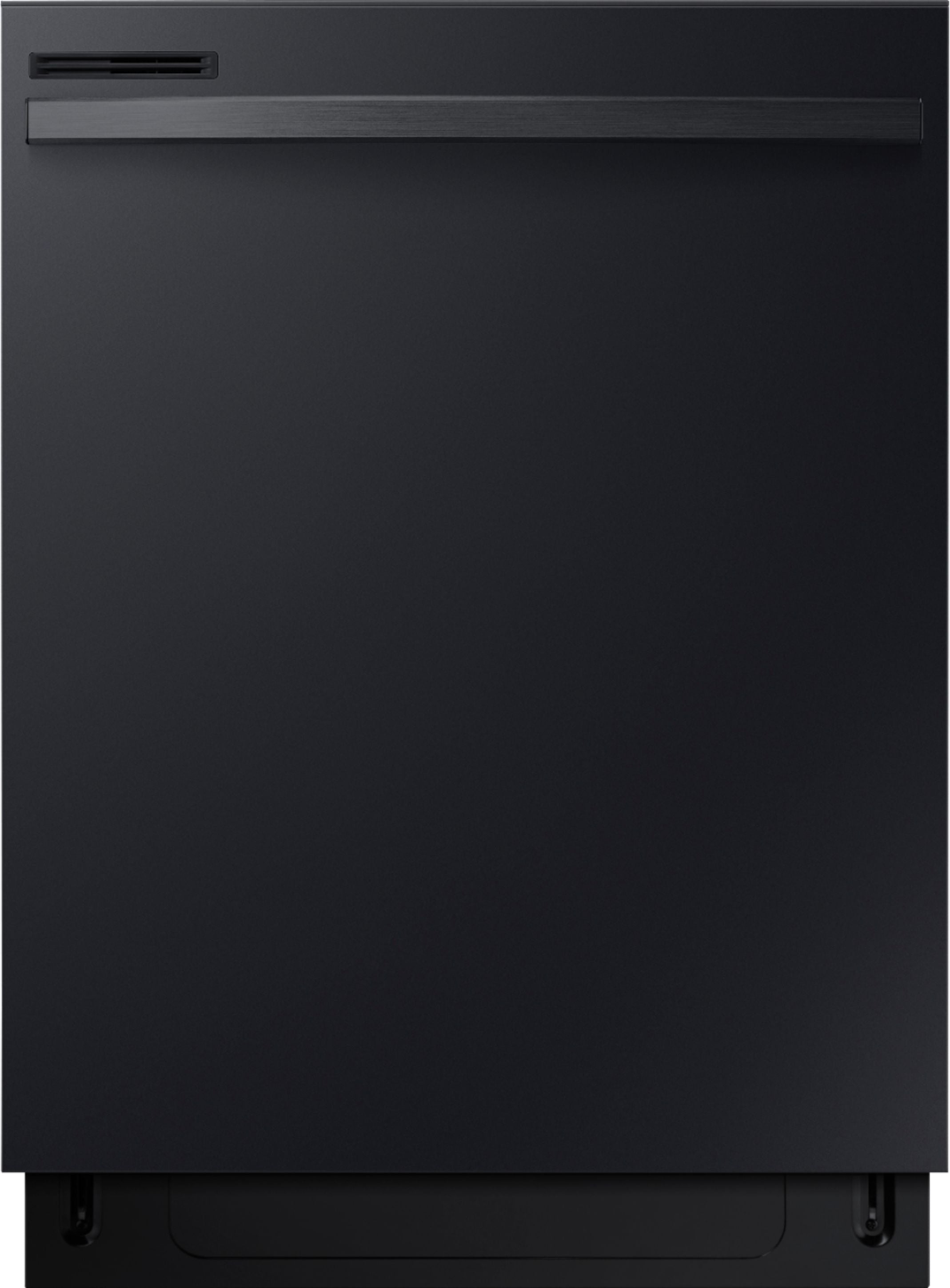

• Product Name: 24" Top Control Built-In Dishwasher

• Brand: Samsung

• Model Number: DW80R2031UB/AA

• Color: Black

• Color Category: Black

• Color Finish: Black

Dimension

• Product Height: 33 7/8 inches

• Product Width: 23 7/8 inches

• Product Depth: 24 5/8 inches

• Product Weight: 64 pounds

Cut-Out Dimensions

• Cut-Out Height: 34 inches

• Cut-Out Width: 24 inches

• Cut-Out Depth: 24 inches

Features

• Drying Method: Heated drying

• Operating Sound Level: 55 decibels adjusted

• Delay Start: Yes

• End-Of-Cycle Signal: Yes

• Cycle Status Lights: Yes

• Child Lock: Yes

• Water Soil Sensor: Yes

Cycle Specifications

• Number of Cycles: 4

• Dishwasher Cycles: Auto, Normal, Heavy, Express 60

• Options and Programs: Hi-Temp Wash, Sanitize (Anti-Bacterial NSF), Delay Start, Control Lock, Heated Dry

• NSF-Certified Sanitization Cycle: Yes

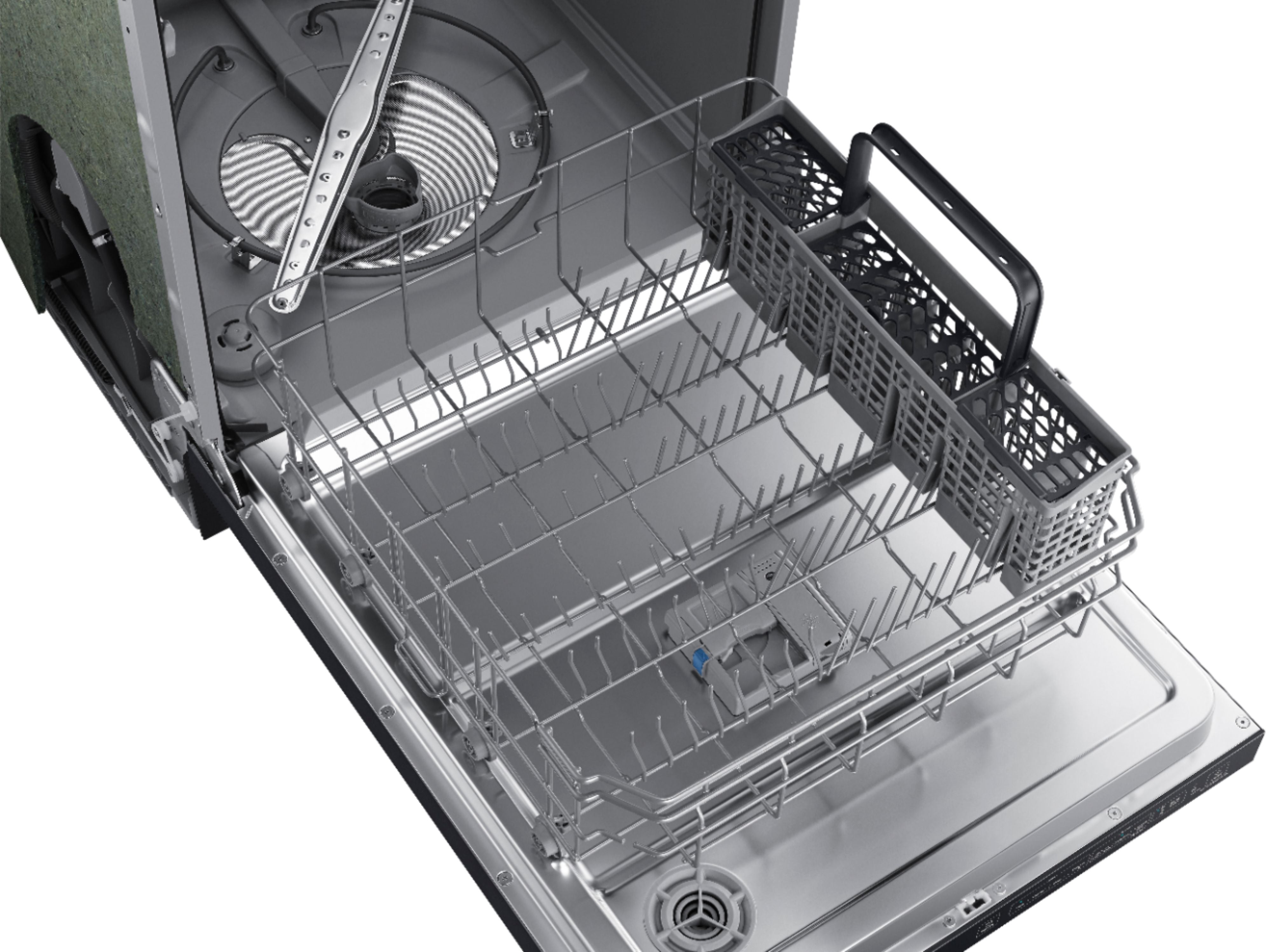

Rack Features

• Number Of Racks: 2

• Upper Rack Features: Adjustable height, Removable

Design

• Panel Ready: No

• Dishwasher Type: Built-in dishwashers

• Tub Finish: Plastic

• Control Type: Touchpad

• Control Location: Top control

• Handle Type: Towel bar handle

• Place Setting Capacity: 14

Included

• Power Cord Included: No

Electrical Specification

• Estimated Annual Electricity Use: 255 kilowatt hours

• Estimated Annual Operating Cost: 34 United States dollars

• Voltage: 120 volts

Certifications Listings & Approvals

• ENERGY STAR Certified: Yes

• ADA Compliant: No

• Consortium for Energy Efficiency (CEE) Rating: CEE Tier 1

Warranty

• Manufacturer's Warranty - Parts: 1 Year

• Manufacturer's Warranty - Labor: 1 Year
