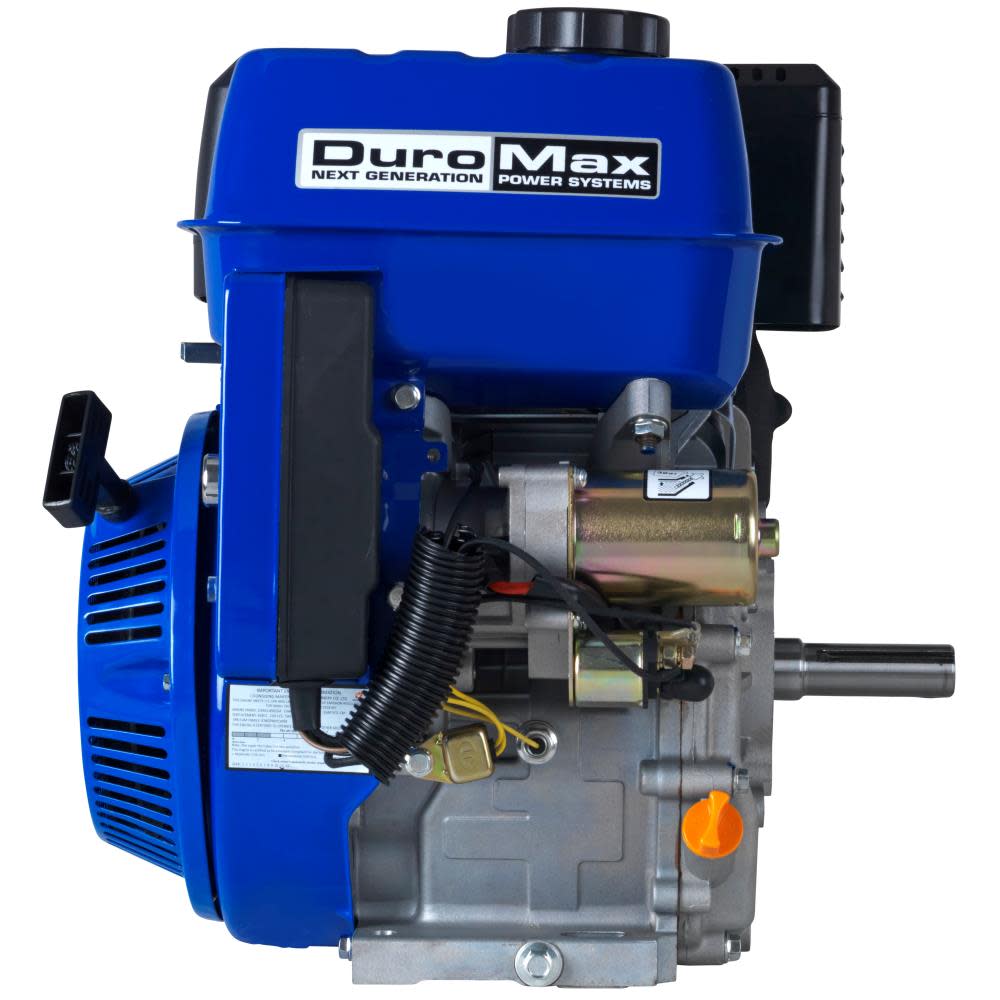

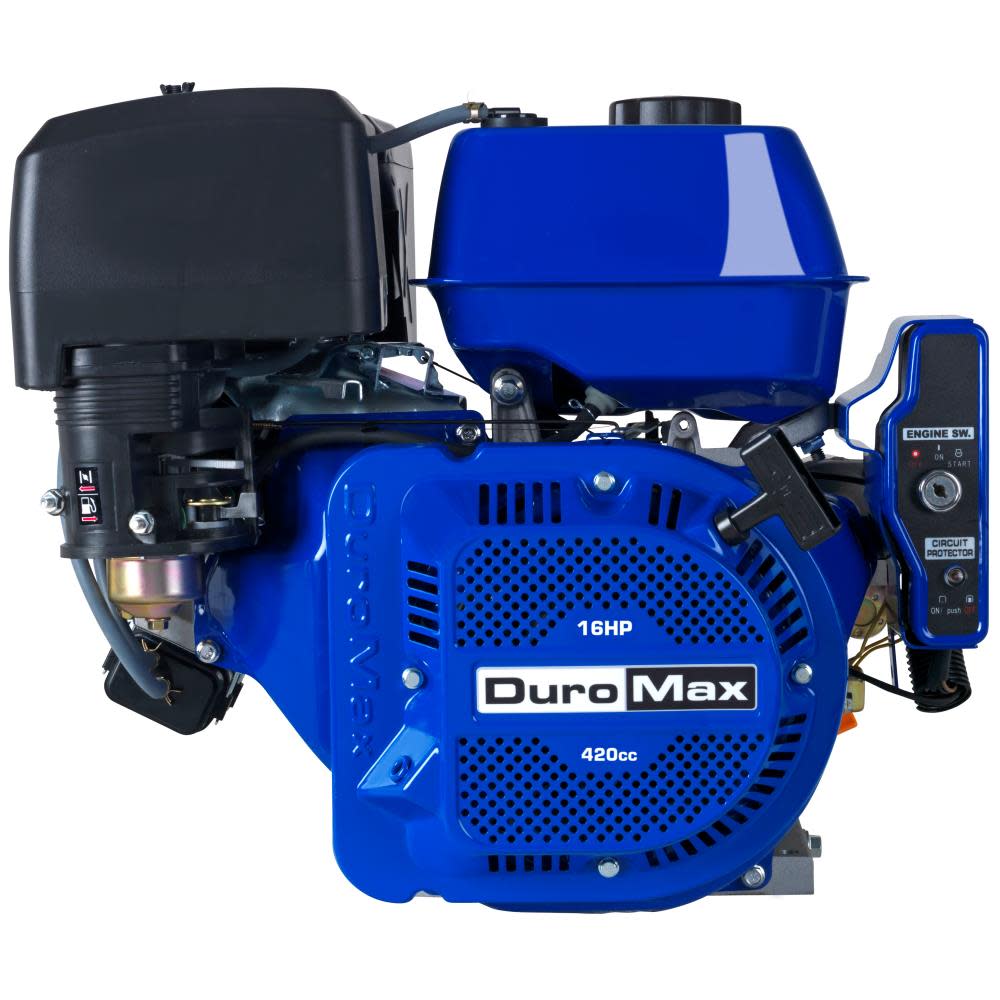

DuroMax 420cc Recoil/Electric Start Engine
The Duromax portable 420cc 1 in. shaft gas-powered recoil/electric start engine is perfect for a variety of applications. It features a cast iron cylinder sleeve for durability and low oil shutoff valve to protect the engine. A recoil start with compression release facilitates easy pulls. This engine gives you the power you need to run a wide range of equipment£¬ including log splitters£¬ pressure washers£¬ go-karts and many other projects.
View Warning Label
Max torque: 28.5 Nm/21.0 ft./lb maximum 420cc EPA approved 4 stroke engine with electronic ignition
Air cleaner: dual£¬ semi-dry£¬ oil bath
Shaft size: 1 in. diameter 2-3/4 in. long£¬ 1/4 in. keyway shaft end drilled and tapped with 3/8 in. 24 UN
Electric and recoil start
Alternate start system: E-Z pull recoil starter
Acme Tools Brand Name
DUROMAX
Acme Tools Part Number
XP16HPE
Assembled Weight (lbs)
77
California Proposition 65 Warning Required
Yes
Camshaft Configuration
OHV
CARB Compliant
Yes
Carburetor Design
Horizontal
Country of Origin
China
Cylinder Count
1
Dry Weight (lbs)
77
Engine Block Material
Cast Aluminum Alloy
Engine Bore (mm)
90
Engine Compression Ratio
8.5:1
Engine Configuration
Single
Engine Cooling System
Air Cooled
Engine Cycle
4-Stroke
Engine Displacement (cc)
420
Engine Fuel Type
Gasoline
Engine Governor System
Mechanical
Engine Oil Sump Style
Wet
Engine Output Shaft Direction
Horizontal Shaft
Engine Stroke (mm)
66
Engine Torque (ft-lbs)
23.24
Fuel Capacity (qt)
6.8
Ignition System
TCI (Transistor Controlled Ignition)
Internal Supplier Part #
XP16HPE
Internet Product Code (IPC)
111C0195CCF
Length (in)
20
Manufacturer Warranty
3 year Residential / 1 year commercial :
If a customer receives a unit Damaged / Defective on delivery£¬ please contact DuroMax�Æs Service Headquarters for instructions before attempting any repair or using.
If a unit is brought into your location for service or repairs and it has noticeable signs of abuse£¬ damage or extreme negligence£¬ please contact DuroMax�Æs Service Headquarters prior to any attempt repair.
If the damage/defect is caused by a defective unit£¬ please contact DuroMax�Æs Service Headquarters for parts and instructions
Oil Capacity (qt)
1.1
Package Depth
20
Package Height
22
Package Weight
83
Package Weight (lbs)
83
PTO Shaft Rotation
Counterclockwise (PTO shaft side)
Starting System
Electric Starter or Recoil
Type of Lubrication System
splash
